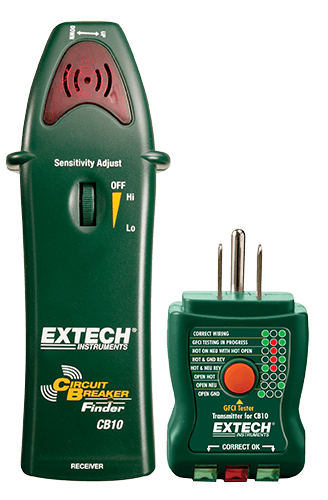

The CB10 is an AC Circuit Breaker Finder/Receptacle Tester that locates circuit breakers and tests receptacle wiring. The CB10 allows the user to quickly locate 110 Volt to 125-Volt AC circuit breakers and fuses with audible and visual circuit breaker indication. The product also features a variable sensitivity adjustment to pinpoint correct circuit breaker. This product is complete with a year warranty, the receiver and GFCI transmitter and a 9V battery for the receiver.
[tab name="Features"]
[tab name="Specifications"]
Operating Voltage | 90 to 120V |
Operating Frequency | 47 to 63Hz |
Power supply | 9V battery (receiver) |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
Operating Humidity | Max 80% up to 87°F (31°C) decreasing linearly to 50% at 104°F (40°C) |
Storage Humidity | <80% |
Operating Altitude | 7000ft. (2000meters) maximum. |
Weight | 5.9oz (167g) |
Dimensions | 8.5" x 2.2" x 1.5" (215 x 56 x 38mm) |
