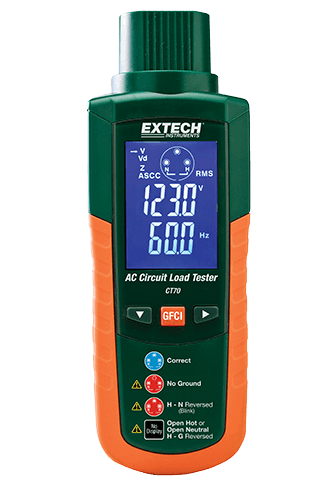

Extech Circuit Analyzer
SKU CT70
$249.99
Save this product for later
Extech Circuit Analyzer
Product Details
Brand: Extech
Extech Circuit Analyzer
Circuit and wiring issues can introduce shock hazards and compromise performance of machinery and equipment. The CT70 is a GFCI and AC circuit analyzer which covers outlet load handling and outlet tester functions. AC load tester functions cover selectable loads of 12, 15, and 20 Amps; loaded and unloaded AC line voltage measurements; voltage drop/line impedance calculations; and peak line voltage. Outlet tester functions include neutral to ground voltage; hot, neutral, and ground impedance; GFCI trip time/trip current; and open or reversed wiring. The CT70 comes complete with AC test cord (standard North American 3-prong plug).
Features
- AC Load Tester functions:
- Selectable loads of 12, 15 and 20 Amps
- Measures loaded and unloaded AC Line Voltage
- Calculates and displays % Voltage Drop and Line Impedance
- Displays Peak Line Voltage and Frequency
- Outlet Tester functions:
- Neutral to Ground Voltage
- Hot, Neutral and Ground Impedance
- GFCI Trip Time and Trip Current
- Open or Reversed wiring
- Complete with AC test cord (standard North American 3-prong plug)
Specifications
| AC Voltage | 90.0 to 240.0V |
| Frequency | 45.0 to 65.0Hz |
| Peak Line Voltage | 350.0V |
| % Voltage Drop | 0.1 to 99.9% |
| Dimensions | 8 x2.8 x 2" (203.2 x 71.1 x 50.8mm) |
| Weight | 11.2oz (317.5g) |
