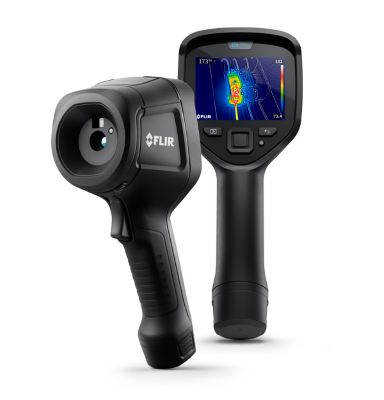

FLIR E8-XT Infrared Camera

FLIR E8-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 76,800 (320 x 240) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools Mobile app for sharing images and sending reports easily from any location.

[tab name="Features"]

• Accuracy
  • ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
• Detector Type
  • Uncooled microbolometer
• Field of view (FOV)
  • 45° × 34°
• IR Resolution
  • 320 × 240 pixels
• Multi Spectral Dynamic Imaging (MSX)
  • IR image enhanced with visible camera detail
• Object Temperature Range
  • –20°C to 550°C (-4°F to 1022°F) in two ranges
• Packaging Size
  • 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
• Thermal Sensitivity/NETD
  • <0.05°C (0.09°F) / <50 mK

[tab name="Specifications"]

• Certifications: UL, CSA, CE, PSE and CCC
• AC Operation: AC adapter, 90–260 VAC input, 5 VDC output to camera
• Interface: USB Micro: Data transfer to and from PC and Mac device
• WiFi: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
• EMC: •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
• Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity
• Operating Temperature Range: –15°C to 50°C (+5°F to 122°F)
• Radio Spectrum: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
• Shock: 25 g (IEC 60068-2-27)
• Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)
• Vibration: 2 g (IEC 60068-2-6)
• Emissivity table/correction: Emissivity table of predefined materials/variable from 0.1 to 1.0
• Encapsulation/Drop: IP 54 (IEC 60529)/2m (6.6 ft.)
• Camera weight incl battery: 0.575 kg (1.27 lb.)
• Color: Black and gray
• Color palettes: Black & white, iron, and rainbow
• f-number: 1.5
• Focus: Focus free
• Image Adjustment: Automatic adjust/lock image
• Image Frequency: 9 Hz
• Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
• Minimum Focus Distance: 0.5 m (1.6 ft.)
• Picture-in-Picture: IR area on visual image
• Spatial resolution (IFOV): 2.6 mrad
• Spectral Range: 7.5–13 µm
• Digital Camera Resolution/FOV: 640 × 480/55° × 43°
• Isotherm: Above alarm, below alarm
• Reflected apparent temperature correction: Automatic, based on input of reflected temperature
• Spot Meter: Center spot; box with min./max.
• Spotmeter and Area: Center spot; box with min./max.
• Display: 3.0 in. 320 × 240 color LCD
• Camera size: (L x W x H) 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
• Set-up Commands: Local adaptation of units, language, date and time formats

[tab name="Included"]

• •Infrared camera
• •Hard transport case
• •Battery (inside camera)
• •USB cable
• •Power supply/charger with EU, UK, US and Australian plugs
• •Printed documentation
