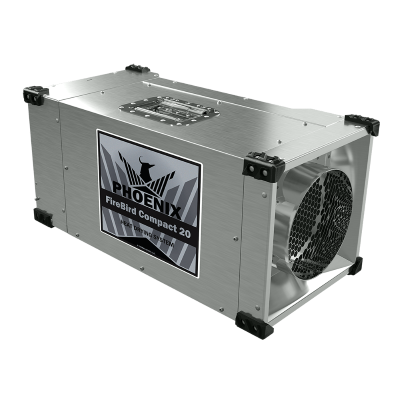

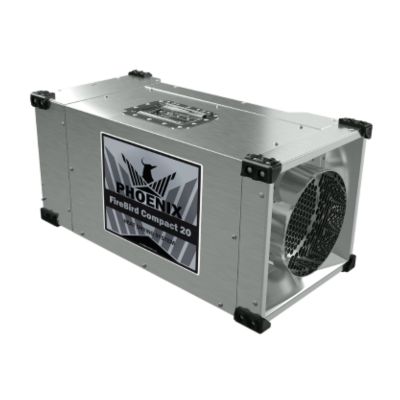

Phoenix FireBird Compact 20 Electric Heat Drying System

The FireBird Compact 20 can provide up to 20,000 BTUs of instant heat and, with its 13″ x 12.5″ x 26″ durable stainless steel cabinet, can operate virtually anywhere on the job site that heat is needed to speed up the drying process.

The FireBird Compact 20 portable electric heat drying system features multiple power receptacles for connection to common 120VAC outlets. The Compact 20 can output up to 20,000 BTUs of clean, safe heat at 250 CFM. The Compact 20’s remote thermostat, which is included with the unit, provides a means to control the temperature in the drying chamber, while its internal temperature cutout ensures safe operation.

At maximum heat (4-12 Amp Circuits @ 5,000 BTUs each), the FireBird produces 20,000 BTUs – that’s 250 CFM with a 70°F temperature rise. Internal temperature cutouts prevent the FireBird Compact 20 from overheating an area, while the Compact 20’s remote thermostat kit provides a means to control the heat from anywhere in the drying space.

[tab name="Specifications"]

POWER: 250 CFM

FILTER: Mini Pleated Media MERV-11

DUCTING OPTIONS

8” flex-duct (intake)
8” flex-duct (supply)

DIMENSIONS

WIDTH: 13”
HEIGHT 12.5”
DEPTH: 26”
WEIGHT: 35 lbs
