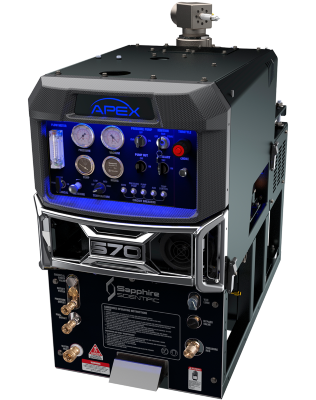

Sapphire Scientific APEX 570

New Cerakote ceramic-coating lowers the heat radiation on all exhaust components by more than 30% to reduce component fatigue and extend your truckmount life—plus keep the van interior cooler! Powered by a liquid-cooled 31 HP Kubota gasoline engine, the Apex 570 uses the patented Sapphire Scientific triple-source thermal well system to deliver maximum consistent heat. Features a sleek new design and the superior performance you expect from Prochem and Sapphire!

Manual

[tab name="Features"]

• Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
• Through-frame drive belt cooling significantly reduces downtime by extending belt life
• Cerakote ceramic coating on exhaust system minimizes heat and extends components' service life
• Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution.
• Easy-to-remove access panel and side hoods allows for quick service
• Narrowest liquid-cooled slide-in on the market.

[tab name="Specifications"]

• POWER PLANT: Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 3000 RPM
• VACUUM PUMP: Gardner Denver trilobe HeliFlow® HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM.
• SOLUTION PUMP: General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM
• WASTE TANK: 90 gal. marine grade aluminum. Optional: 120 gal. high capacity waste tank
