Name: TITAN 325 Truckmount
Brand: HydraMaster
SKU: 750-012-751-10
Price: 19995.99 USD
Availability: InStock

TITAN 325 Truckmount

Store/Shop By Brand/Hydramaster

Product Details

Brand: HydraMaster

CALL STORE FOR PRICING: (215) 592-0812

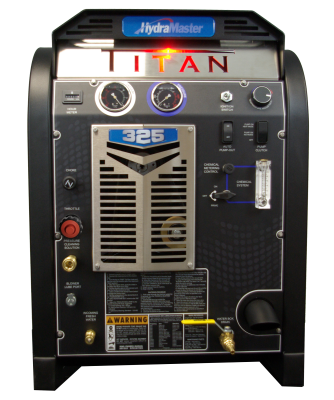

TITAN 325 Truckmount

Perfectly sized for companies who do residential and light commercial who also do water damage restoration! Finally, you don’t have to put up with barely adequate performance to get an affordable entry-level machine. The TITAN 325 takes the entry level truckmount to new heights. It’s perfect for operators who want to step up their game. Plus the new TITAN 325 is equipped with an expanded fin tubed heat exchange thermal accumulation system with 40% more heating capacity than before. The TITAN 325 has been tested to be the HOTTEST machine in its class

Features

• Engine: 18HP Industrial Air-Cooled Engine

• Reliable 2 cylinder OHV design

• Electric key start, 1.0 gph fuel consumption

• Vacuum: Competitor® DL 3006 Blower

• Low vibration, pulsation and sound reduced

• Hardened, precision helical gears

• Double row ball bearings at gear end

• Precision machined ductile iron rotors

• Dual oil bath design with oil level sight windows

• Competitor High Pressure Solution Pump

• 3.5 gpm capacity

• Operating pressure, 0 to 1,000 heated psi, with HydraClutch™ pump clutch for water extraction

• Heating: MAX-TEMP Thermal Capture and Heat Exchange System

• Divert tube and fin heat exchanger system

• 240°F Maximum Temperature (170-200°F at 1.25gpm water flow)

Specifications

• Subcategory: Slide In

• Dimensions: 24”W x 31”H x 36”D

• Weight: 563 lbs

• Engine: 18HP Industrial Air-Cooled Engine

• Ignition: Keyed

• Max Temp: 240º F

• Chemical System: Last-step chemical injection, meter controlled

• Recovery Tank: 70 gallon MaxAir™ recovery tank; aluminum, baked-on powder coated finish, includes stainless steel filter and filter basket, 36 1/2″L x 10 1/2″W x 31″H, 100 lbs

• Solution Hose Length: 100 ft x 1/4″

• Vacuum Hose Length: 100 ft x 2″

• Wand Capacity: Single

• Fuel Consumption: 1.1 GPH

• Uses: Residential and Light Commercial/ Water extraction

Includes

• Chemical flow meter (0-10 gph)

• Runtime hour meter

• Chemical flow control valve

• Vacuum gauge (0-30″ Hg)

• Solution pressure gauge (0-2500 psi)

• Solution pressure adjustment

• Pre-wired pump-in switch

• Pre-wired for AWDS (Automatic Wastewater Disposal System)

• Fresh water inlet

• Water system drain valve

• Solution Hose Length: 100 ft x 1/4″

• Vacuum Hose Length: 100 ft x 2″

• 1.5 Inch EVOLUTION Wand

• Engine choke

• Engine throttle

• Electrical circuit protection (resettable)

• Solution temperature control selector

• Stainless steel last-step chemical injection, meter controlled

• Hydra-Clutch Pump Clutch for water extraction

• 5 gallon chemical jug

• Battery box

• Van decal

• Van installation kit

• Operation and maintenance manual (CD)

• 70 gallon MaxxAir recovery tank; includes stainless steel filter and filter basket, 36 1/2″L x 10 1/2″W x 31″H, 100 lbs
