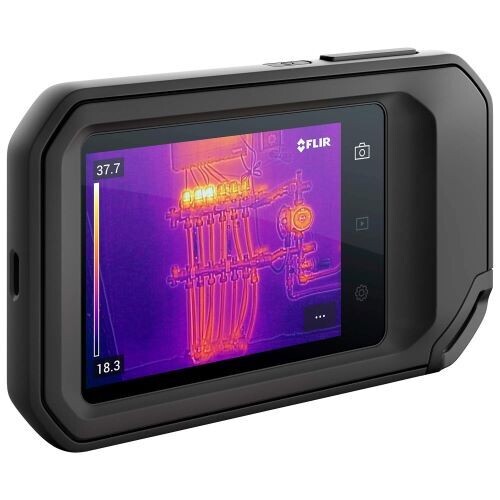

Flir C5 Compact Thermal Camera

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

[tab name="Features"]

• FIND AND TROUBLESHOOT

  Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span.

• DOCUMENT AND SHARE

  Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers.

• RUGGED, RELIABLE, COMPACT

  Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop.

[tab name="Specifications"]

Accuracy:

- At ambient temp. 15 to 35°C (59 to 95°F)

- Object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%

Object Temperature Range: -20 to 400°C (-4 to 752°F)

IR Sensor: 160 x 120 (19,200 pixels)

Touchscreen: Capacitive touch

Screen Rotation: Yes

FLIR Screen-EST Mode: No
